For Architects & Spec Writers
Dimensioned shop drawings for La Costa Shade motorized screen systems — PowerScreen surface-mount and recessed details, the AZ Shade cable-guided assembly, and the PowerDoor sliding screen. Rough openings, track profiles, hood clearances, and hardware. Drawn by our engineering team, published as issued.
6 Drawings · 3 Product Lines · Click a sheet to enlarge
Before You Spec
Click any sheet to open it full-size in the browser. Nothing downloads until you ask it to.
Every download is the dimensioned PDF as published from our CAD system — vector, scalable, not a compressed preview.
CAD files, an oversized opening, or a condition these sheets don't cover — call (888) 717-1393 or email info@lacostashade.com.
Drawing Library
PowerScreen
Surface-mount and recessed installations, from the assembly envelope down to the bracket.
Enlarge

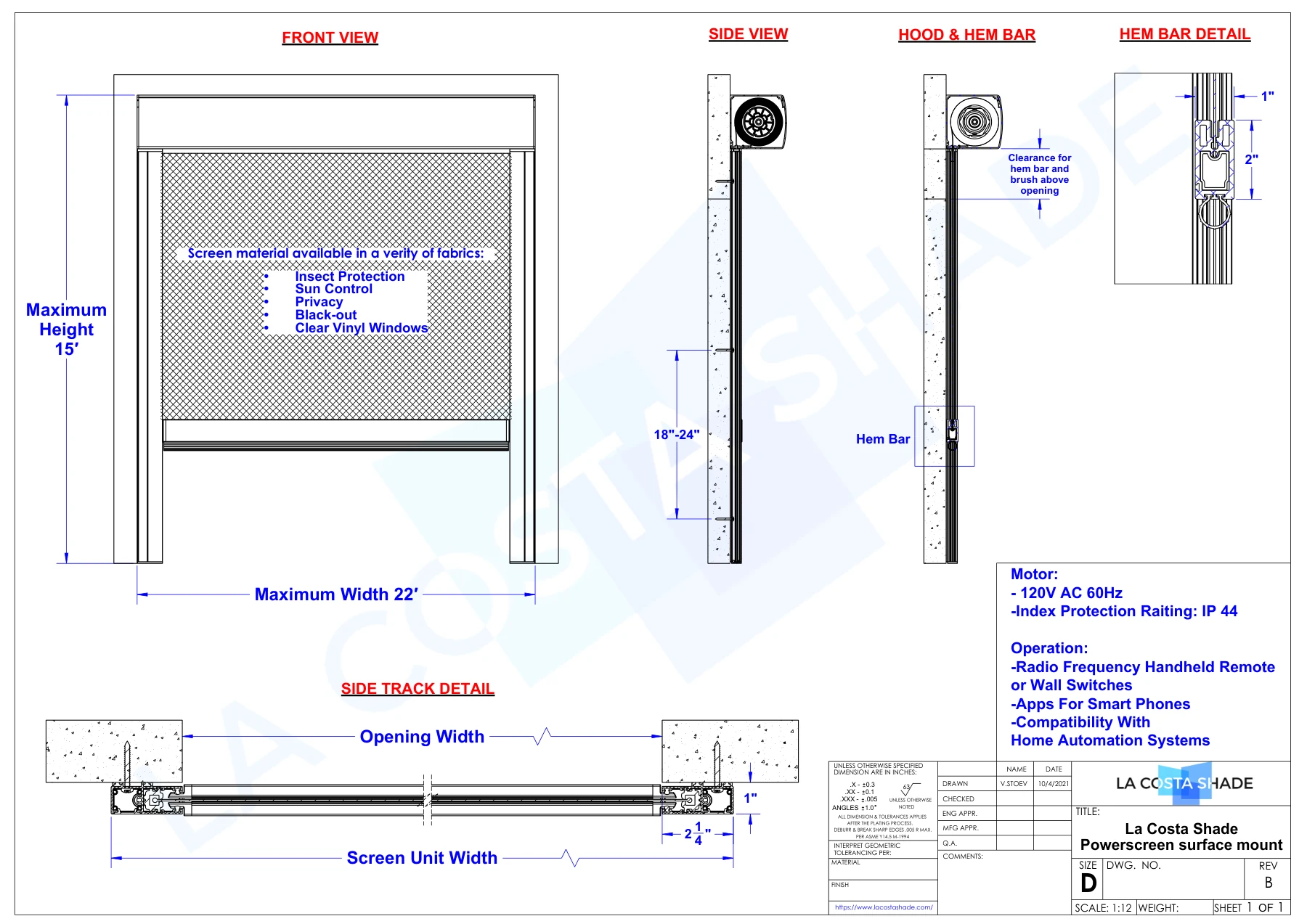

The full assembly envelope for a face-mounted unit: front elevation, side section, hood and hem bar, and the side-track profile in plan.
Enlarge

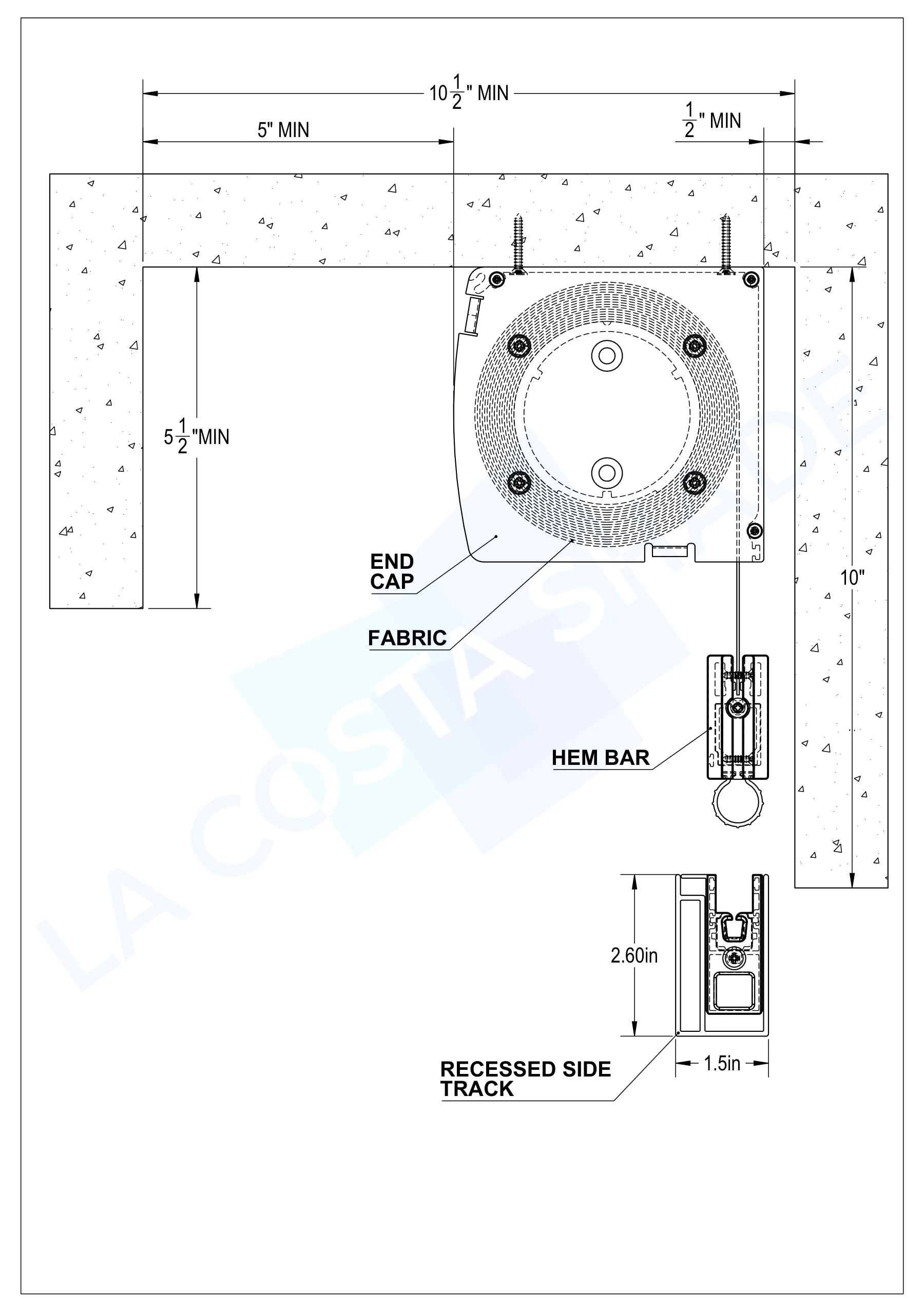

Section through a header pocket with the roller and side tracks concealed inside the structure. Frame to these minimums and the system disappears into the building.
Enlarge

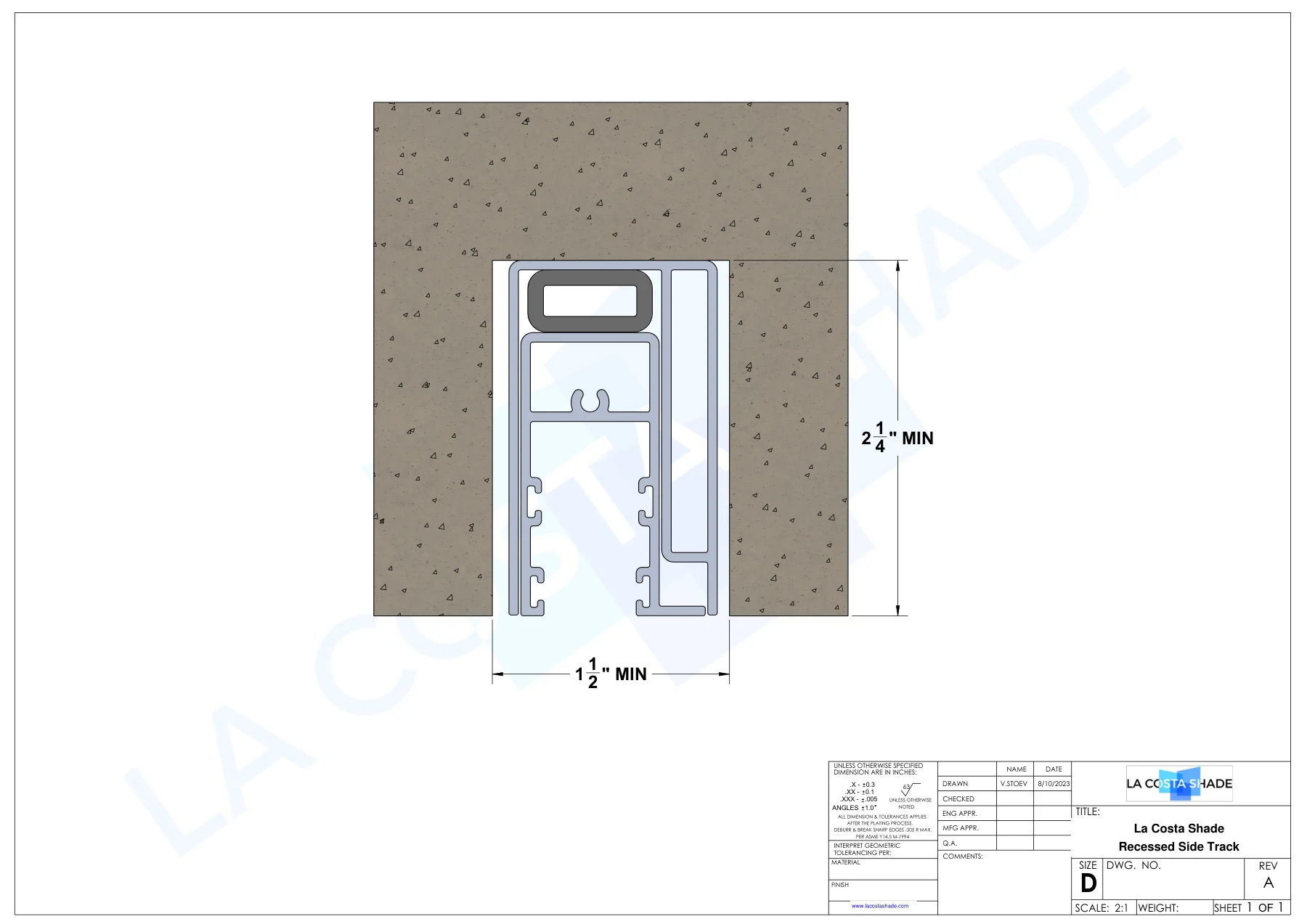

The side track drawn at 2:1 inside its framed pocket. Use it to set the jamb detail and confirm the track clears the finished surface.
Enlarge

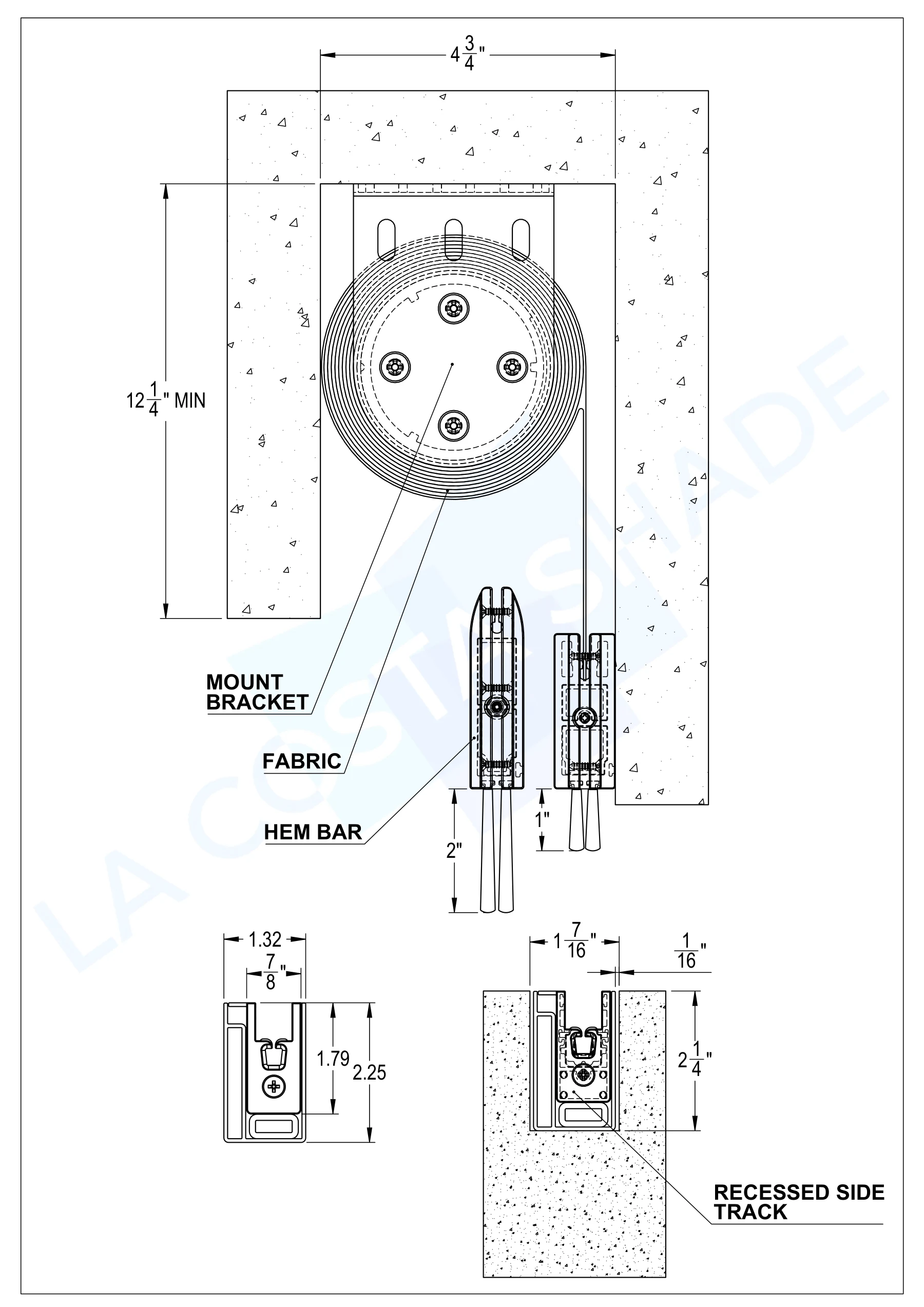

Hardware detail for the recessed installation: mount bracket in the pocket, fabric and hem bar parking, and both side-track profiles dimensioned.
AZ Shade
Cable guides instead of side tracks — for openings where a track cannot be fixed.
Enlarge

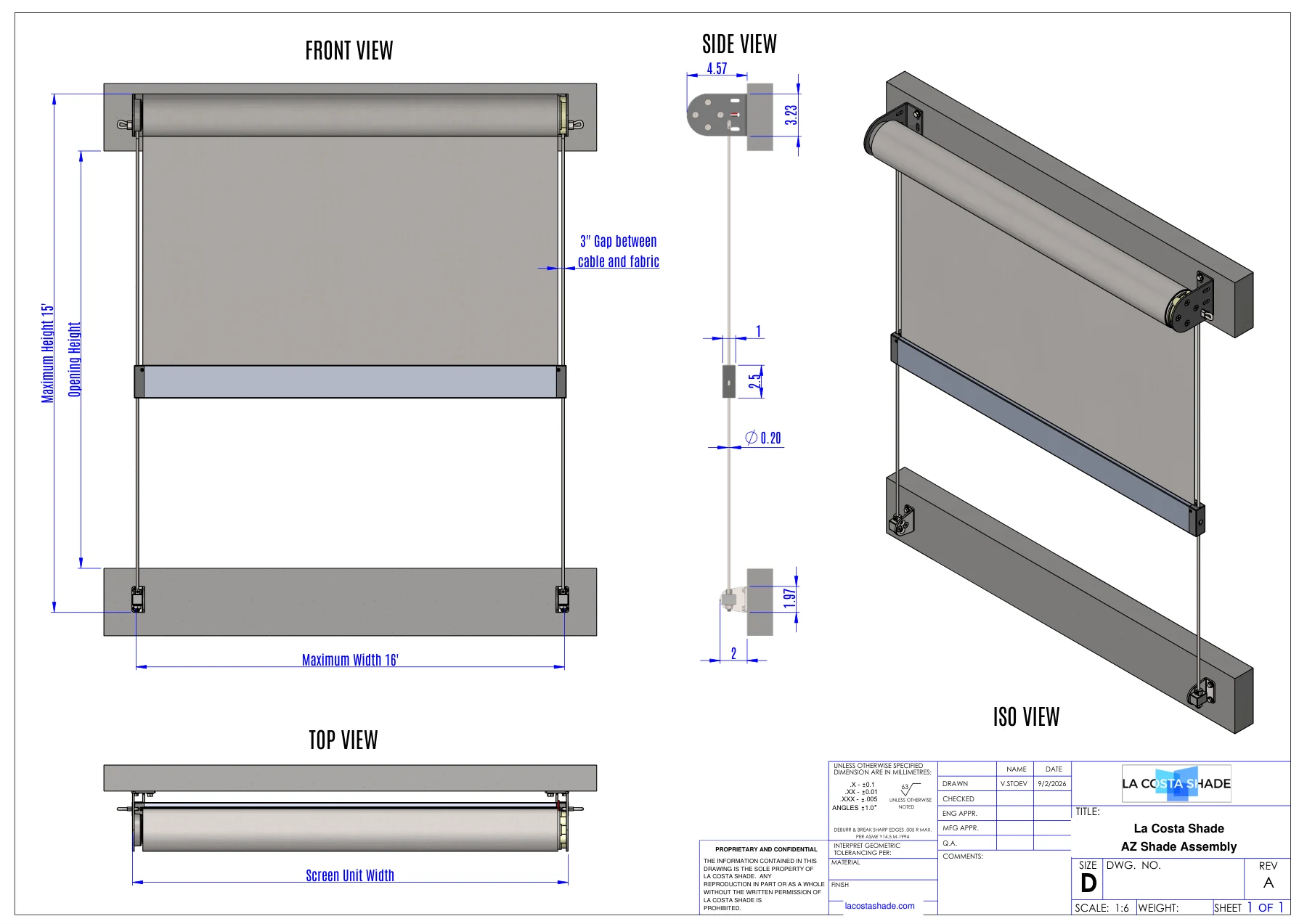

Front, side, isometric and top views of the cable-guided screen, with roller and bracket dimensions and the cable-to-fabric clearance.
PowerDoor
The side-to-side sliding screen that never blocks the doorway.
Enlarge

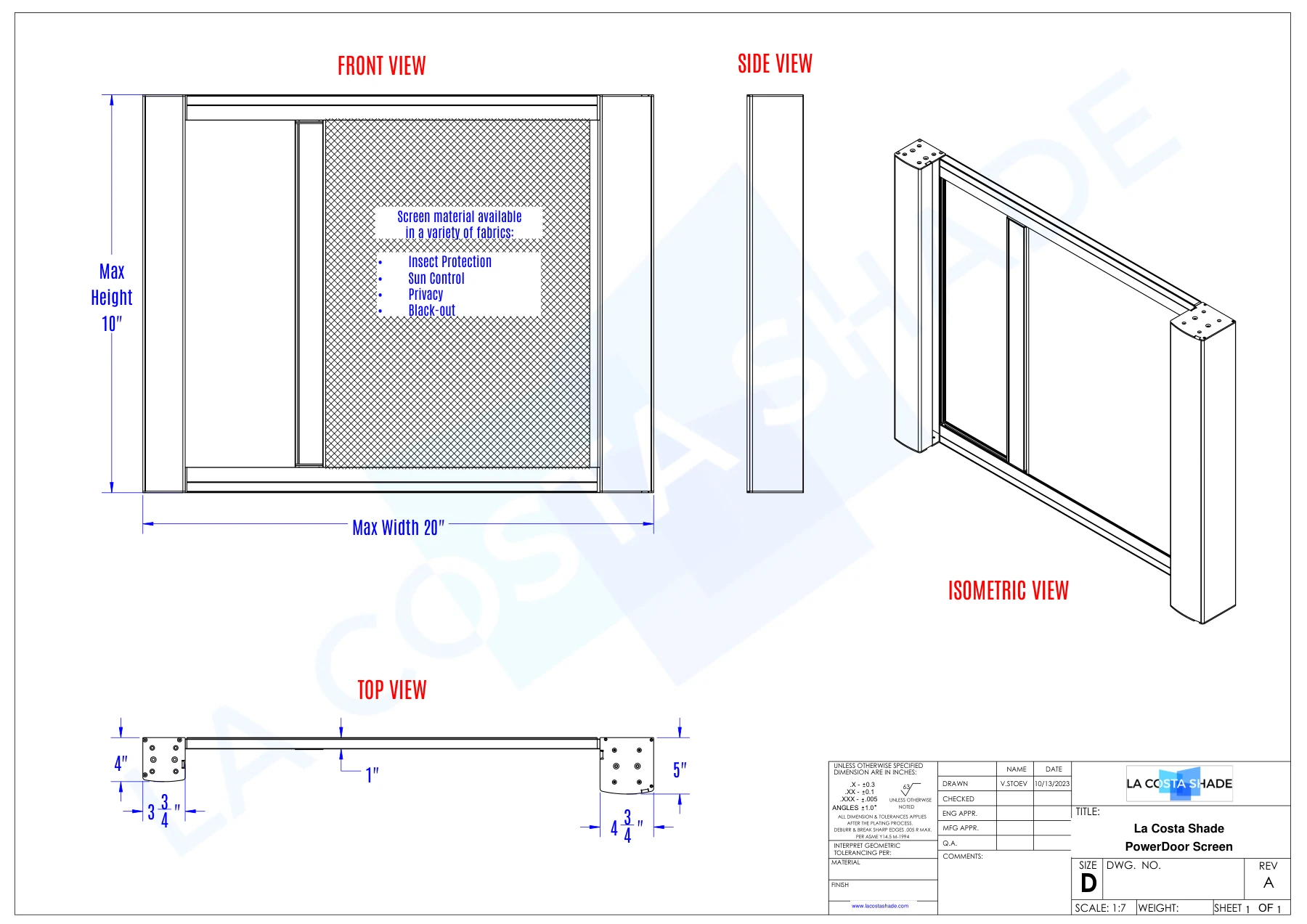

The side-to-side sliding door screen in front, side, isometric and top view, with head and jamb dimensions for the framed opening.
Frame the opening to these numbers and the screen drops in — no field modification, no second trip.
Specification Note
We'll review the opening, confirm clearances, and supply CAD files or a custom detail for your drawing set.
